Overview

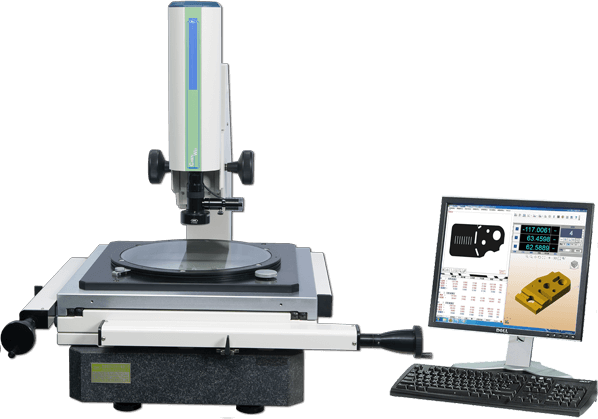

• A smart vision microscope (also named as CMM) is a device used in manufacturing and assembly processes to test a part or assembly against the design intent.
• By precisely recording the X, and Y coordinates of the target, points are generated which can then be analyzed for the construction of features.
• A smart vision microscope is a device for measuring the physical geometrical characteristics of an object.

• This machine may be manually controlled by an operator or a computer.
• Optical probes are lens-CCD-systems and / or laser probes instead of touching the material, which change CMMs to measuring microscopes or multi sensor measuring machines.
• The image of the surface (captured by a contrast between black and white zones) will be shown.

Features

1. Features:

Options of Centering Microscope, CCD Camera, Laser and other projection system depends on the different workpiece. Further application, manual, motorized with joystick or the CNC model can be optional vy your demands.

2. Applications:

IC electronics, Lead Frame and the related manufacturers in the fields of LCD, Semiconductor, P.C.B Screen Printing WireCut, E.D.M, Rubber, Plastic, Precise Mold & Dies and other 2D workpiece machining.

3. Measuring Functions:

The multi-function MSU 3DPRO effects the 2D geometric measurement of Point, Line, Circle, Arc, Angle, Distance, Pitching, Alignment, and is acoompanied with the RS232 port.

Surface LED light

Coaxial LED light

Metallographical lens

4 Programmable LED

Detent zoom

Motorized zoom

MCR 20

Coaxial zoom

Laser zoom

Image CCD

Photos of optional accessories

Equipment

Auto Zoom

MX-200 DRO Counter

Renishaw PROBE with STAR STYLI

Rotary table

CW-1510N Rotary table

CW-2020N Rotary table

CW-3030 Rotary table

Clamping jig tool

V-type rotary tool
Workpiece dia:Ø3.0mm ~ Ø40.0mm

Round type ER32
Workpiece dia:Ø2.0mm ~ Ø20.0mm

Round type
Workpiece dia：Standard Ø3.0mm ~ Ø15.0mm
特殊：Ø15.0mm ~ Ø25.0mm

MX-200 / MPD-N function

MX-200

• MX200 isDRO counter of 2D/3D measurement.
• Ideal for Optical Comparators, Measuring Microscopes, or any Metrology device requiring encoder supported measurement.
• Supporting Keypad and Touchscreen control.

MPD-N

• Multiple points click on touch panel.
• Bluetooth connection simple and easier.
• Measurement result by Graphics and text display.
• Completed function set with Alignment.
