Overview

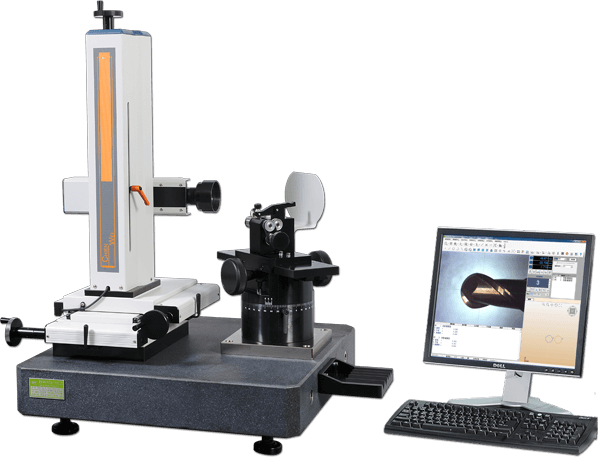

• Designed high-density granite, Chien Wei has developed a measuring machine with stability and precision.
• Every guide-way is lapped to a high straightness and parallelism using the most advanced manufacturing techniques in the industry.

• With passion for quality we optimize our value-added process, bring new technology forward and develop existing products continuously for every customer.

Photos of optional accessories

Equipment

Auto Zoom

MX-200 DRO Counter

Renishaw PROBE with STAR STYLI

Rotary table

CW-1510N Rotary table

CW-2020N Rotary table

CW-3030 Rotary table

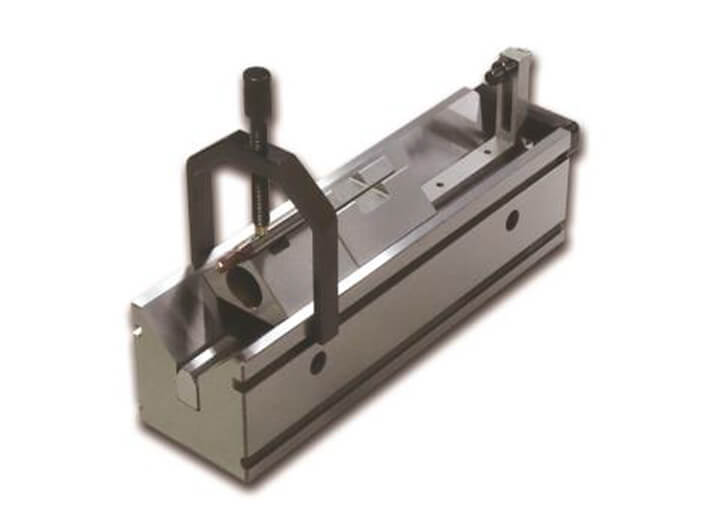

Clamping jig tool

V-type rotary tool
Workpiece dia:Ø3.0mm ~ Ø40.0mm

Round type ER32
Workpiece dia:Ø2.0mm ~ Ø20.0mm

Round type
Workpiece dia：Standard Ø3.0mm ~ Ø15.0mm
特殊：Ø15.0mm ~ Ø25.0mm

Features

1. Features:

Options of Centering Microscope, CCD Camera, Laser and other projection system depends on the different workpiece. Further application, manual, motorized with joystick or the CNC model can be optional based on your demands.

2. Applications:

IC electronics, Lead Frame and the related manufacturers in the fields of LCD, Semiconductor, P.C.B Screen Printing WireCut, E.D.M, Rubber, Plastic, Precise Mold & Dies and other 2D workpiece machining.

3. Measuring Functions:

The multi-function MSU 3DPRO effects the 2D geometric measurement of Point, Line, Circle, Arc, Angle, Distance, Pitching, Alignment, and is acoompanied with the RS232 port.

Surface LED light

Coaxial LED light

Metallographical lens

4 Programmable LED

Detent zoom

Motorized zoom

MCR 20

Coaxial zoom

Laser zoom

Image CCD

MSU 3D Pro software

Multi-icon buttons provide a quick and easy measurement. User be able to combine icons with window need in tool bar as project and display in program.

Auto-focus

Profile deviation

Tools measurement

Auto-Alignment

Image measuring for screen print

Tolerance check

MX-200 / MPD-N function

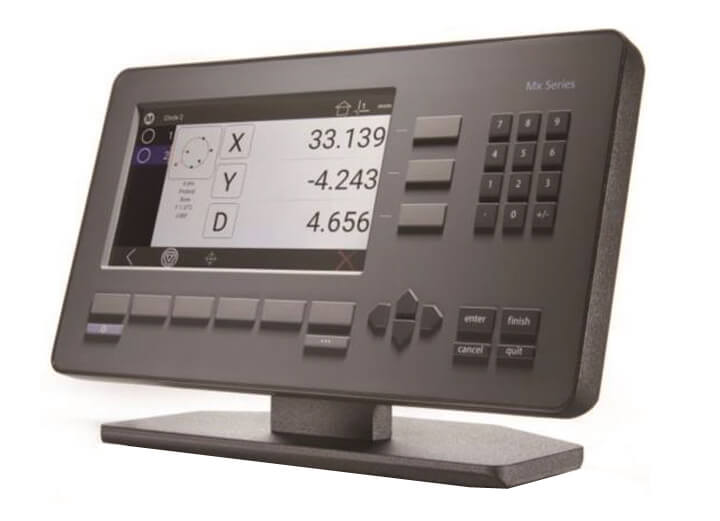

MX-200

• MX200 isDRO counter of 2D/3D measurement.
• Ideal for Optical Comparators, Measuring Microscopes, or any Metrology device requiring encoder supported measurement.
• Supporting Keypad and Touchscreen control.

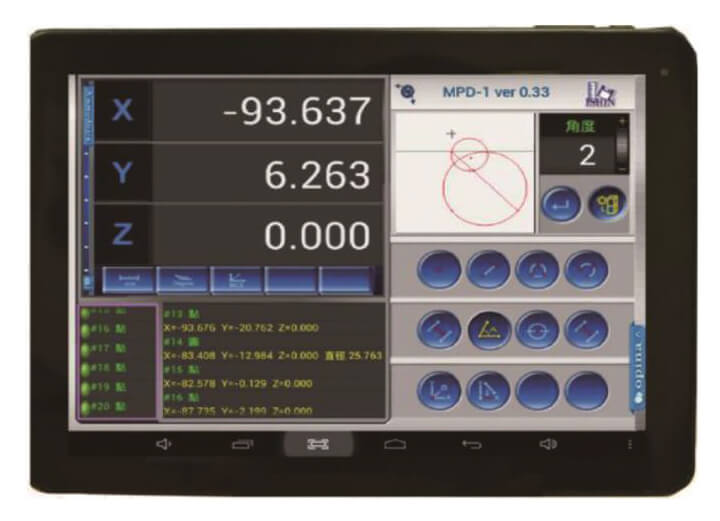

MPD-N

• Multiple points click on touch panel.
• Bluetooth connection simple and easier.
• Measurement result by Graphics and text display.
• Completed function set with Alignment.
