CW-1510
Machine Features
- A smart vision microscope (also named as CMM) is a device used in manufacturing and assembly processes to test a part or assembly against the design intent.
- By precisely recording the X, and Y coordinates of the target, points are generated which can then be analyzed for the construction of features.
- A smart vision microscope is a device for measuring the physical geometrical characteristics of an object.
- This machine may be manually controlled by an operator or a computer.
- Optical probes are lens-CCD-systems and / or laser probes instead of touching the material, which change CMMs to measuring microscopes or multi sensor measuring machines.
- The image of the surface (captured by a contrast between black and white zones) will be shown.
2D Coordinate Measuring Machine
1.Features:
Options of Centering Microscope, CCD Camera, Laser and other projection s depend on different work pieces. Further application, manual, motorized with joystick or the CNC model can be optional by your demands.
2. Applications:
IC electronics, Lead Frame and the related manufacturers in the fields of LCD, Semiconductor, PCB Screen Printing WireCut, E.D.M, Rubber, Plastic, Precise Mold & Dies and other 2D workpiece machining.
3. Measuring Functions:
The multi-function MSU 3DPRO affects the 2D geometric measurement of Point, Line, Circle, Arc, Angle, Distance, Pitching, Alignment, and is acoompanied with the RS232 port.

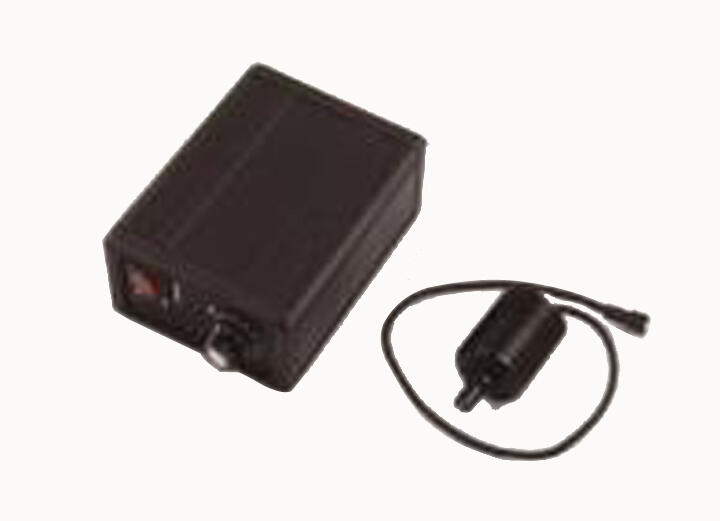

Surface LED light
Coaxial LED light
Metallographical lens

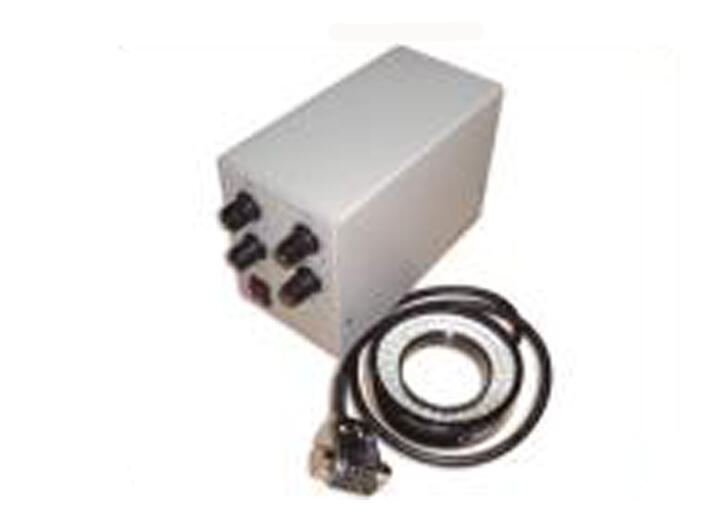

4 Programmable LED

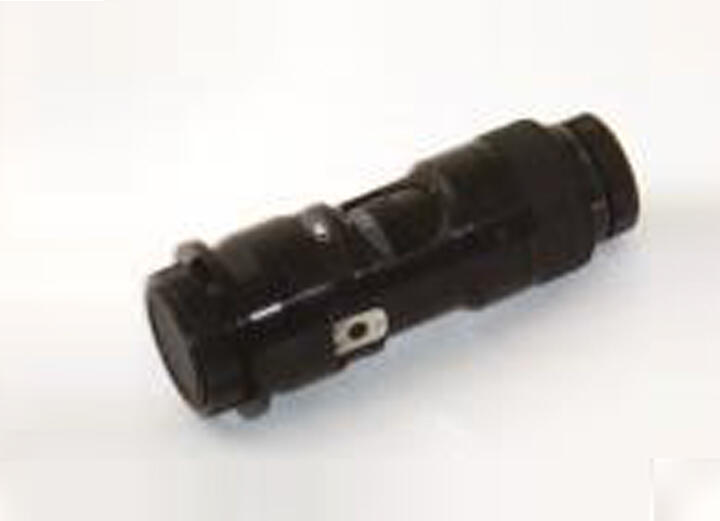

Detent zoom
Motorized zoom
MCR 20

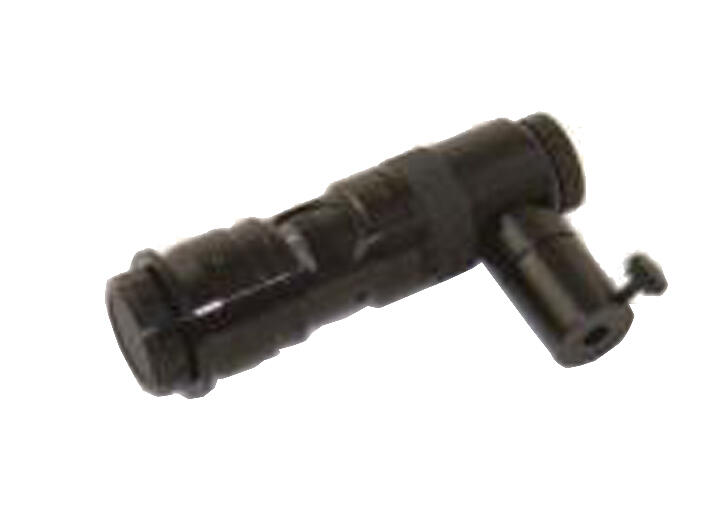

Coaxial zoom
Laser zoom
Image CCD

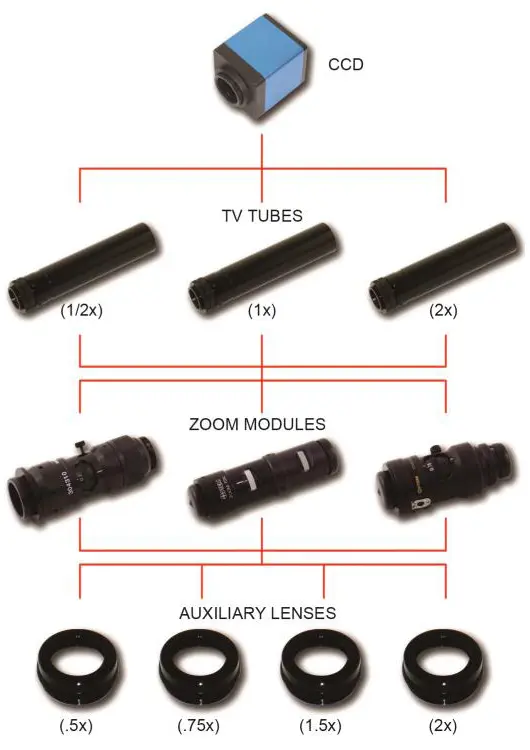

2D Image Measurement Instrument Selection and Equipment
Equipment

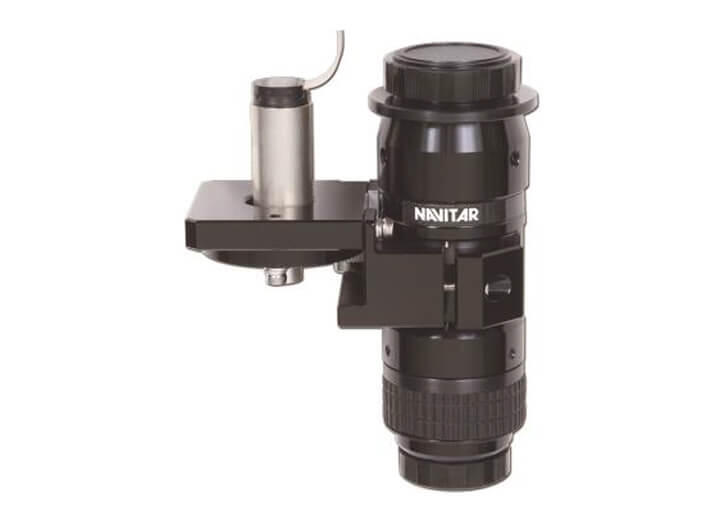

Auto Zoom
MX-200 DRO Counter

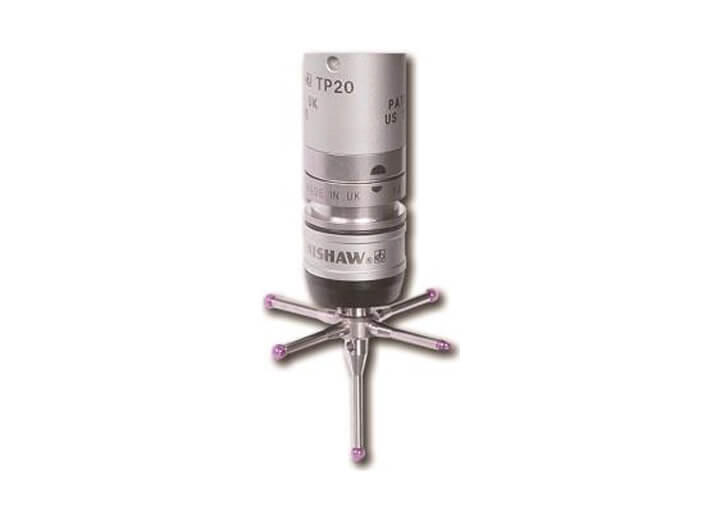

Renishaw PROBE with STAR STYLI

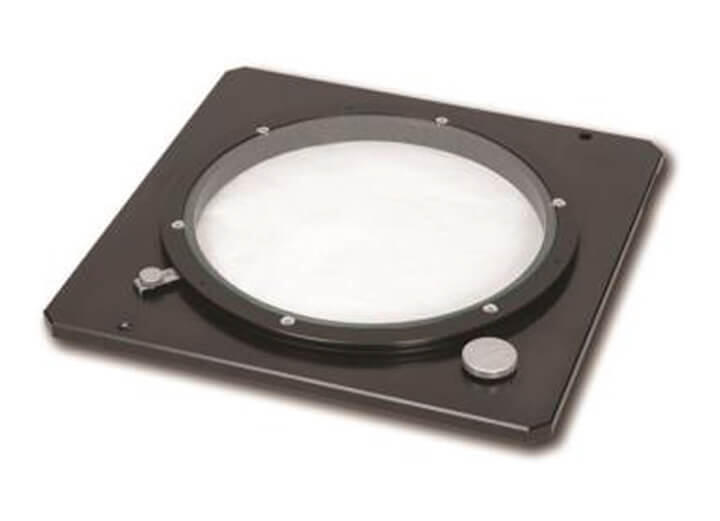

Rotary table
CW-1510N Rotary table
CW-2020N Rotary table
CW-3030 Rotary table
Clamping jig tool

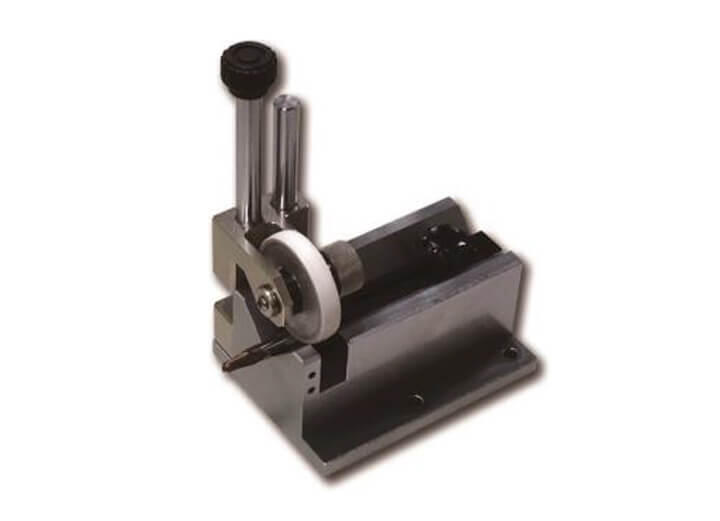

V-type rotary tool
Workpiece dia：Ø3.0mm ~ Ø40.0mm

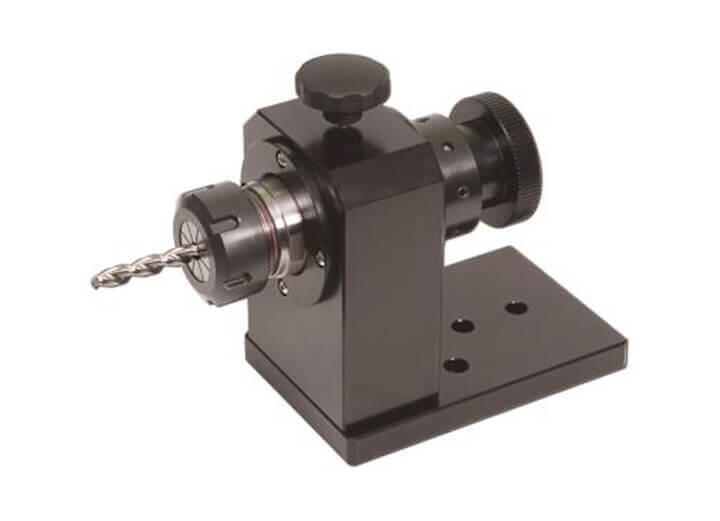

Round type ER32
Workpiece dia：Ø2.0mm ~ Ø20.0mm
Round type
Workpiece dia：Standard Ø3.0mm ~ Ø15.0mm
Special：Ø15.0mm ~ Ø25.0mm

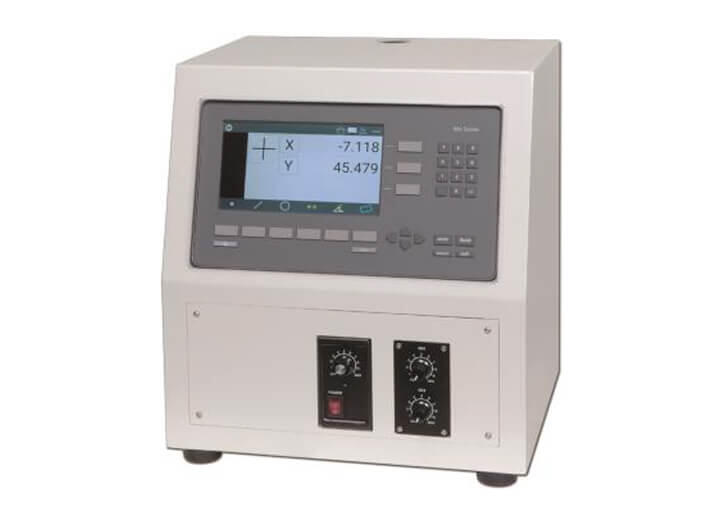

MX-200 / MPD-N functionMX-200
- MX200 isDRO counter of 2D/3D measurement.
- Ideal for Optical Comparators, Measuring Microscopes, or any Metrology device requiring encoder supported measurement.
- Supporting Keypad and Touchscreen control.
MPD-N
- Multiple points click on touch panel.
- Bluetooth connection simple and easier.
- Measurement result by Graphics and text display.
- Completed function set with Alignment.
| Item | CW-1510N | CW-1510N-PC |
|---|---|---|
| Measuring range | 150x100x160 mm (X,Y,Z) | 150x100x160 mm (X,Y,Z) |
| Resolution | Scales 0.0005 mm in 2 Axes | Scales 0.0005 mm in 2 Axes |
| Counter / Dro | MX-200 or MPD-N | |
| Vision | CCD + Zoom + 24" Monitor + Cross-Hair (built-in) | CCD + Zoom |
| Zoom | 30x ~ 200x | 30x ~ 200x |
| Surface light | White LED Light | White LED Light |
| Contour light | Green LED | Green LED |
| Accuracy | U1=3+L/200 um | U1=3+L/200 um |
| Repeatability | 0.002 mm | 0.002 mm |
| Transmission | Linear Guideway + Rolling Drive Nut | Linear Guideway + Rolling Drive Nut |
| Operation | Manual | Manual |
| Demo-parts height | 100 mm | 100 mm |
| Demo-parts weigh | 5 kgs | 5 kgs |
| Dimension | 46x50.4x88 cm | 46x50.4x88 cm |
| Dimension | 136x50.4x88 cm (With Cabinet) | 150x50.4x88 cm (With PC) |
| Michine weight | 60 kgs | 60 kgs |
| Option | Bottom light / coaxial light | Bottom light / coaxial light |
| PC Hardware | PC + 24" Monitor + WIN-PRO | |
| Measuring software | MSU-3D PRO, M3 |
Machine Features
- A smart vision microscope (also named as CMM) is a device used in manufacturing and assembly processes to test a part or assembly against the design intent.
- By precisely recording the X, and Y coordinates of the target, points are generated which can then be analyzed for the construction of features.
- A smart vision microscope is a device for measuring the physical geometrical characteristics of an object.
- This machine may be manually controlled by an operator or a computer.
- Optical probes are lens-CCD-systems and / or laser probes instead of touching the material, which change CMMs to measuring microscopes or multi sensor measuring machines.
- The image of the surface (captured by a contrast between black and white zones) will be shown.
2D Coordinate Measuring Machine
1. Features:
Options of Centering Microscope, CCD Camera, Laser and other projection s depend on different work pieces. Further application, manual, motorized with joystick or the CNC model can be optional by your demands.
2. Applications:
IC electronics, Lead Frame and the related manufacturers in the fields of LCD, Semiconductor, PCB Screen Printing WireCut, E.D.M, Rubber, Plastic, Precise Mold & Dies and other 2D workpiece machining.
3. Measuring Functions:
The multi-function MSU 3DPRO affects the 2D geometric measurement of Point, Line, Circle, Arc, Angle, Distance, Pitching, Alignment, and is acoompanied with the RS232 port.
Related accessories

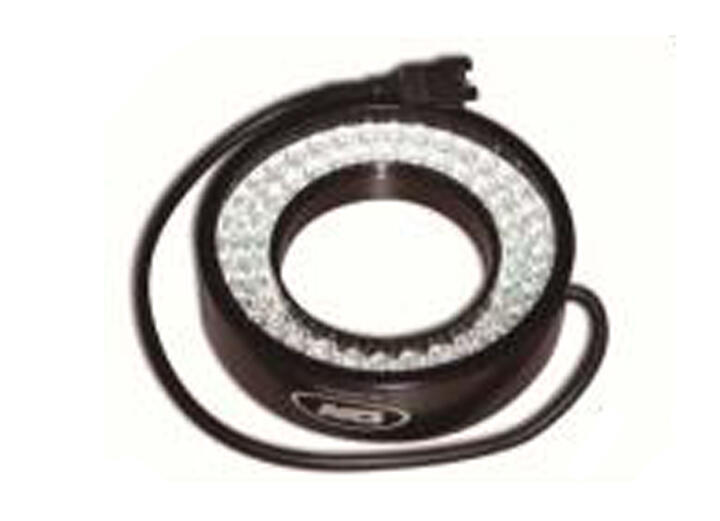

Surface LED light
Coaxial LED light

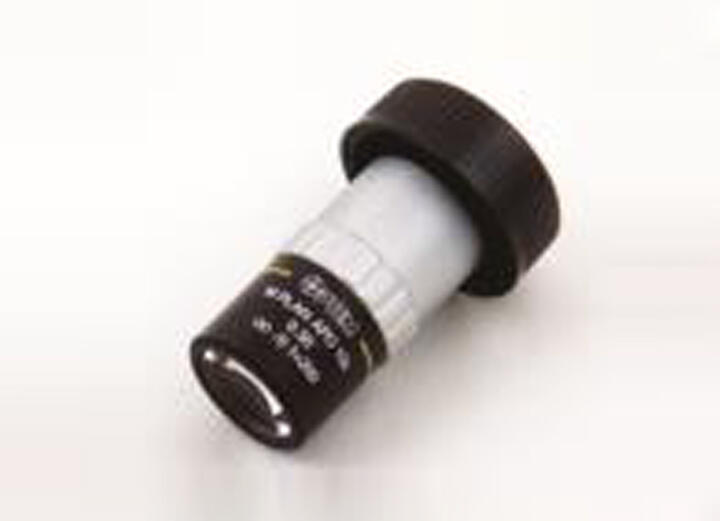

Metallographical lens
4 Programmable LED
Detent zoom
Motorized zoom

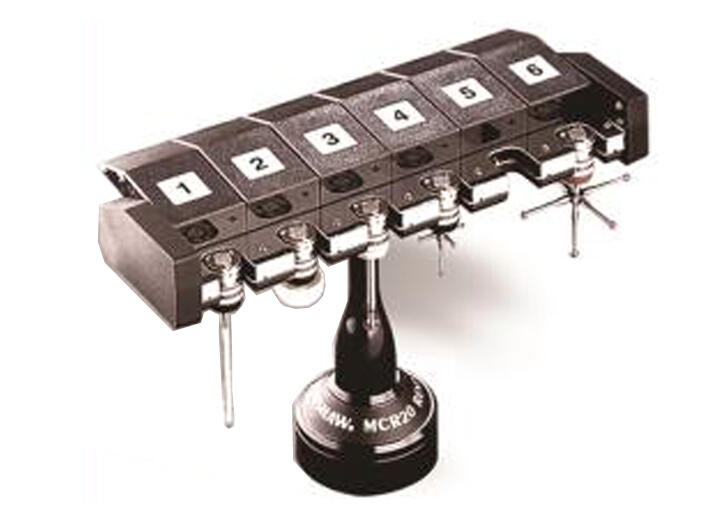

MCR 20
Coaxial zoom

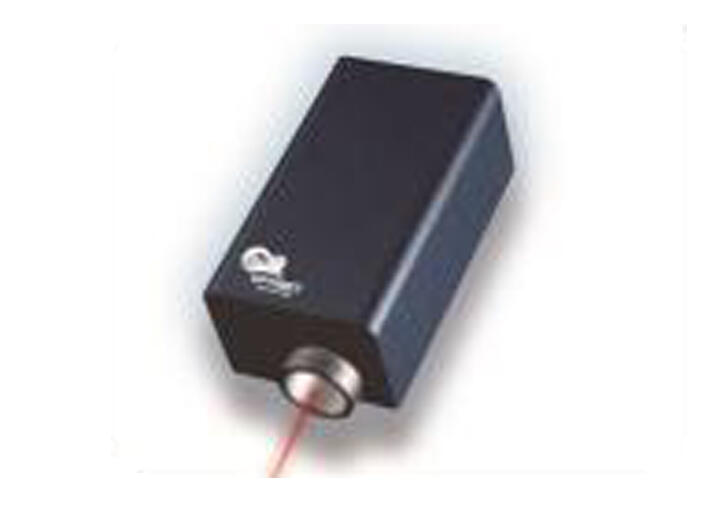

Laser zoom
Image CCD
2D Image Measurement Instrument Selection and Equipment
Equipment
Auto Zoom
MX-200 DRO Counter
Renishaw PROBE with STAR STYLI

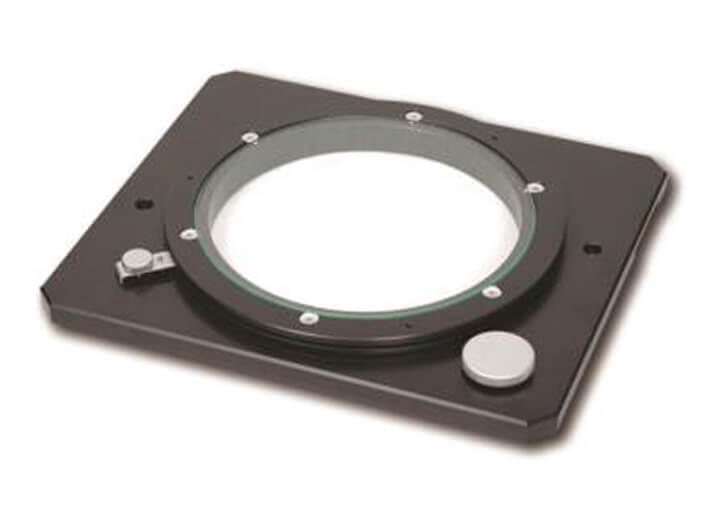

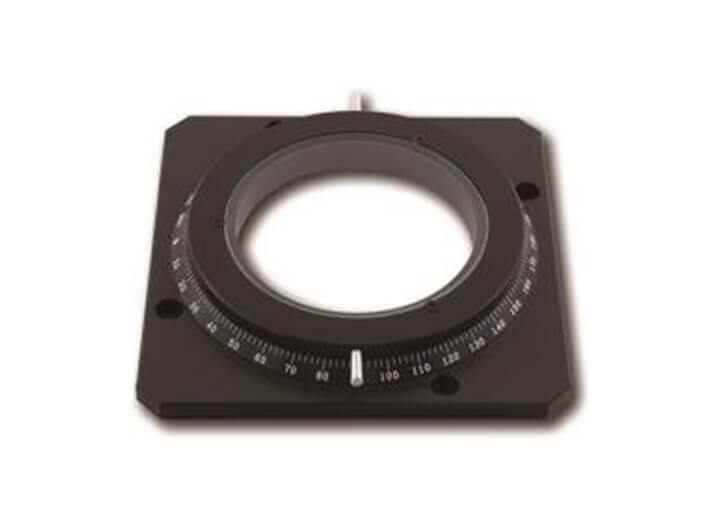

Rotary table
CW-1510N Rotary table
CW-2020N Rotary table
CW-3030 Rotary table
Clamping jig tool

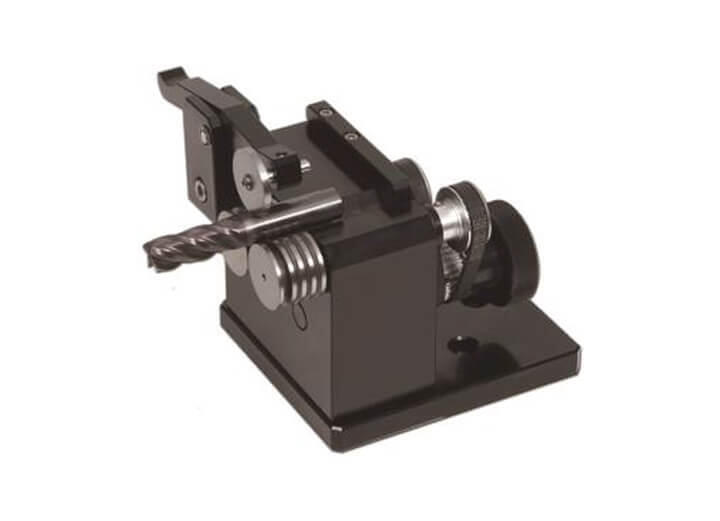

V-type rotary tool
Workpiece dia: Ø3.0mm ~ Ø40.0mm
Round type ER32
Workpiece dia: Ø2.0mm ~ Ø20.0mm
Round type
Workpiece dia: Standard Ø3.0mm ~ Ø15.0mm
Special：Ø15.0mm ~ Ø25.0mm
MX-200 / MPD-N function
MX-200
- MX200 isDRO counter of 2D/3D measurement.
- Ideal for Optical Comparators, Measuring Microscopes, or any Metrology device requiring encoder supported measurement.
- Supporting Keypad and Touchscreen control.
MPD-N
- Multiple points click on touch panel.
- Bluetooth connection simple and easier.
- Measurement result by Graphics and text display.
- Completed function set with Alignment.
Specifications
| Item | CW-1510N | CW-1510N-PC |
|---|---|---|
| Measuring range | 150x100x160 mm (X,Y,Z) | 150x100x160 mm (X,Y,Z) |
| Resolution | Scales 0.0005 mm in 2 Axes | Scales 0.0005 mm in 2 Axes |
| Counter / Dro | MX-200 or MPD-N | |
| Vision | CCD + Zoom + 24" Monitor + Cross-Hair (built-in) | CCD + Zoom |
| Zoom | 30x ~ 200x | 30x ~ 200x |
| Surface light | White LED Light | White LED Light |
| Contour light | Green LED | Green LED |
| Accuracy | U1=3+L/200 um | U1=3+L/200 um |
| Repeatability | 0.002 mm | 0.002 mm |
| Transmission | Linear Guideway + Rolling Drive Nut | Linear Guideway + Rolling Drive Nut |
| Operation | Manual | Manual |
| Demo-parts height | 100 mm | 100 mm |
| Demo-parts weigh | 5 kgs | 5 kgs |
| Dimension | 46x50.4x88 cm | 46x50.4x88 cm |
| Dimension | 136x50.4x88 cm (With Cabinet) | 150x50.4x88 cm (With PC) |
| Michine weight | 60 kgs | 60 kgs |
| Option | Bottom light / coaxial light | Bottom light / coaxial light |
| PC Hardware | PC + 24" Monitor + WIN-PRO | |
| Measuring software | MSU-3D PRO, M3 |
