JG-1270CM

A jig grinder is a machine tool used for grinding complex shapes and holes where the highest degrees of accuracy and finish are required.
The jig grinder is very similar to a jig borer, in that the table positioning and spindles are very accurate (far more than a manual milling machine or lathe).
*It is almost used by tool and die makers in the creation of jigs or mating holes.
There are usually many peripheral elements to a jig grinder, including linear motors, pneumatic grinding head (or electrical grinding head), and various cooling systems for supplying coolant to the work and machine itself.
The machine operates by a high speed spindle rotation.
The spindles are removable and interchangeable to achieve varying process speeds.
Some spindles are fixed speed (60,000 rpm), others are adjustable (30,000 ~ 50,000 rpm), and still others are very high speed (150,000 rpm).

The main spindle has a wide range of speeds to ensure proper grinder feed rates are maintained.
The machines have a standard X and Y table.
All axes are indexed to 0.0001 on the handwheels.
The machine head adopts linear motors.
The spindle rotates at a variable speed and with an accuracy of 0.0001 for very precise holes and grinding.
A reliable jig grinder will let work to achieve a higher degree of efficiency level.
These features are all critical in precise process.

Specification

Work range of the slides

Range of movement
X Axos	1200 mm (47.2" )
Y Axis	700 mm (27.6" )
Z Axis	100 mm (3.9" )
W Axis	360 mm (15.7" )
Max feed speed
X,Y Axis	10 m/min
Z Axis	24 m/min
Reading resolution (Linear scales)
X,Y Axis	0.05 um
Z Axis	0.05 um
Cs Axis	0.001 deg
Location accuracy
X,Y Axis	±0.0025 mm
Position coder
X,Y Axis	Linear encoder
Z Axis	Linear encoder
Cs Axis	Magnetic sensor
Table
Table area (LxW)	1280x860 mm (50.4"x33.9")
Permissble load (max.)	1000 kg
Number of T-slot	8
Shape of T-slot	18.0 mm (Width)

Work range of the grinding head

Grinding-spindle speeds
Electrical grinding head	40000 rpm
Weight	11.5 kg
Max. diameter of wheel	Ø3~Ø55 mm
Electrical grinding head	60000 rpm
Weight	11.5 kg
Max. diameter of wheel	Ø1~Ø10 mm
Planetary speed	5~200 rpm
Bore-diameter capacity	1~100 mm (0.04"~3.9")
Collets	Ø3, Ø6, Ø10, Ø12 mm
U axis last input increment	0.001 mm
U axis max. stroke	30 mm (1.18")
Motor
X Axis (Linear Motor)	3 KW (12Nm)
Y Axis (Linear Motor)	3 KW (12Nm)
W Axis (Servo Motor)	1.6 KW (8 Nm)
Z Axis (Linear Motor)	2 x 2.1 KW
Cs Axis (Spindle Motor)	0.55 KW Spindle
U Axis (Stepping Motor)	Stepping
Outer dimensions and weight
Length	3392 mm
Width	2609 mm
Height (Max.)	3000 mm
Height (Min.)	2750 mm
Weight	7200 kg
Power requirement
Voltage	220v ± 10%
Max. Voltage consumption	15KW
Compressed air	7 kg / cm²
Air consumption	420 nl / min
NC controller function
NC controller	Fanuc 31i-B
Simultaneously controlled axes	4 axes
Max increase up to number of controlled axes	26 axes
Cs contouring control	1 axes
Chopping function	Building in
Last input increment	0.0001 mm / 0.0001 deg
Max. stroke	± 9999.9999 mm / ± 9999.9999 deg
Rapid traverse Max	10 m / min
Rapid traverse override	F0, 25, 50, 100%
Feed per minute	mm / min
Manual handle feed	4 axes
Manual handle feed rate	x1, x10, x100, x1000
Tape code (auto. recognitiom)	EIA / ISO
Program storage length	640 m
Parity check	Horizontal and vertical parity

Machinery Features

Controller：FANUC 31i-B controller.
Implementable of diverse shape grinding.
Capability of synchronize movement of 4 axis(X,Y,Z,CS)
Friendly chopping operation.
Abnormity detecting capability when power on.
Adjustment of grinding head power output by LCD control panel.
Working Travel: 1200 x 700 x 100 mm (X, Y, Z).

MAX load: 1000 kgs.
MAX feeding speed: 10000 mm/min (X & Y & Z).
Resolution: 0.01um.
Planetary grinding roundness ≦ 0.002 mm.
Z axis is driven by high-speed precise linear motor.
12 grinding setting modes.

Capable of synch the 4th axis for maching process	Mold plate	Dresser
Lubricant mist collector	Hydraulic power unit

Grinding Process Example Diagrams

=SKD11 HRC 62°	Rough Cut	Finish Machining
Grinding Pencil(or Grinding Wheel)	( CBN#150 )	( CBN#150 )
Rotating Speed	40.000 rpm	40.000 rpm
Reserving	0.2 mm	0.015 mm
Cutting Feed Rate	40 mm/min	20 mm/min
Cutting Feed	0.1 mm	0.005 mm
Process Time	About 12 minutes	About 20 minutes

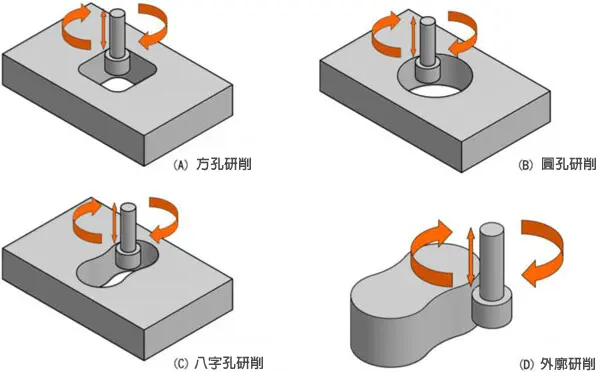

Grinding Process Diagram

A：Square hole grinding
B：Round hole grinding
C：Figure 8 hole grinding
D：Profile grinding

Overview

A jig grinder is a machine tool used for grinding complex shapes and holes where the highest degrees of accuracy and finish are required.
The jig grinder is very similar to a jig borer, in that the table positioning and spindles are very accurate (far more than a manual milling machine or lathe).
*It is almost used by tool and die makers in the creation of jigs or mating holes.
There are usually many peripheral elements to a jig grinder, including linear motors, pneumatic grinding head (or electrical grinding head), and various cooling systems for supplying coolant to the work and machine itself.
The machine operates by a high speed spindle rotation.
The spindles are removable and interchangeable to achieve varying process speeds.
Some spindles are fixed speed (60,000 rpm), others are adjustable (30,000 ~ 50,000 rpm), and still others are very high speed (150,000 rpm).

The main spindle has a wide range of speeds to ensure proper grinder feed rates are maintained.
The machines have a standard X and Y table.
All axes are indexed to 0.0001 on the handwheels.
The machine head adopts linear motors.
The spindle rotates at a variable speed and with an accuracy of 0.0001 for very precise holes and grinding.
A reliable jig grinder will let work to achieve a higher degree of efficiency level.
These features are all critical in precise process.

Machinery Features

Controller：FANUC 31i-B controller.
Implementable of diverse shape grinding.
Capability of synchronize movement of 4 axis(X,Y,Z,CS)
Friendly chopping operation.
Abnormity detecting capability when power on.
Adjustment of grinding head power output by LCD control panel.
Working Travel: 1200 x 700 x 100 mm (X, Y, Z).

MAX load: 1000 kgs.
MAX feeding speed: 10000 mm/min (X & Y & Z).
Resolution: 0.01um.
Planetary grinding roundness ≦ 0.002 mm.
Z axis is driven by high-speed precise linear motor.
12 grinding setting modes.

Capable of synch the 4th axis for maching process

Mold plate

Dresser

Lubricant mist collector

Hydraulic power unit

Grinding Process Example Diagrams

=SKD11 HRC 62°	Rough Cut	Finish Machining
Grinding Pencil(or Grinding Wheel)	( CBN#150 )	( CBN#150 )
Rotating Speed	40.000 rpm	40.000 rpm
Reserving	0.2 mm	0.015 mm
Cutting Feed Rate	40 mm/min	20 mm/min
Cutting Feed	0.1 mm	0.005 mm
Process Time	About 12 minutes	About 20 minutes

Grinding Process Diagram

Specification

Work range of the slides

Range of movement
X Axos	1200 mm (47.2" )
Y Axis	700 mm (27.6" )
Z Axis	100 mm (3.9" )
W Axis	360 mm (15.7" )
Max feed speed
X,Y Axis	10 m/min
Z Axis	24 m/min
Reading resolution (Linear scales)
X,Y Axis	0.05 um
Z Axis	0.05 um
Cs Axis	0.001 deg
Location accuracy
X,Y Axis	±0.0025 mm
Position coder
X,Y Axis	Linear encoder
Z Axis	Linear encoder
Cs Axis	Magnetic sensor
Table
Table area (LxW)	1280x860 mm (50.4"x33.9")
Permissble load (max.)	1000 kg
Number of T-slot	8
Shape of T-slot	18.0 mm (Width)

Work range of the grinding head

Grinding-spindle speeds
Electrical grinding head	40000 rpm
Weight	11.5 kg
Max. diameter of wheel	Ø3~Ø55 mm
Electrical grinding head	60000 rpm
Weight	11.5 kg
Max. diameter of wheel	Ø1~Ø10 mm
Planetary speed	5~200 rpm
Bore-diameter capacity	1~100 mm (0.04"~3.9")
Collets	Ø3, Ø6, Ø10, Ø12 mm
U axis last input increment	0.001 mm
U axis max. stroke	30 mm (1.18")
Motor
X Axis (Linear Motor)	3 KW (12Nm)
Y Axis (Linear Motor)	3 KW (12Nm)
W Axis (Servo Motor)	1.6 KW (8 Nm)
Z Axis (Linear Motor)	2 x 2.1 KW
Cs Axis (Spindle Motor)	0.55 KW Spindle
U Axis (Stepping Motor)	Stepping
Outer dimensions and weight
Length	3392 mm
Width	2609 mm
Height (Max.)	3000 mm
Height (Min.)	2750 mm
Weight	7200 kg
Power requirement
Voltage	220v ± 10%
Max. Voltage consumption	15KW
Compressed air	7 kg / cm²
Air consumption	420 nl / min
NC controller function
NC controller	Fanuc 31i-B
Simultaneously controlled axes	4 axes
Max increase up to number of controlled axes	26 axes
Cs contouring control	1 axes
Chopping function	Building in
Last input increment	0.0001 mm / 0.0001 deg
Max. stroke	± 9999.9999 mm / ± 9999.9999 deg
Rapid traverse Max	10 m / min
Rapid traverse override	F0, 25, 50, 100%
Feed per minute	mm / min
Manual handle feed	4 axes
Manual handle feed rate	x1, x10, x100, x1000
Tape code (auto. recognitiom)	EIA / ISO
Program storage length	640 m
Parity check	Horizontal and vertical parity

Accessories / Q'ty

Accessories	Q'ty	Accessories	Q'ty
1. Mini Jack S75	4	11. Clamping Chuck 12x65L	4
2. Mini Jack S95	4	12. Clamping Chuck 12x80L	4
3. Mini Jack S125	4	13. Clamping Chuck 12x100L	4
4. T-bolt M12x50L	4	14. Dial Gauge Frame	1
5. T-bolt M12x75L	4	15. Cutting fluid filtration + Oil mist recovery	1 set
6. T-bolt M12x100L	4	16. Electric grease lubricator	1
7. T-bolt M12x125L	4	17. Cooler(Cycle Type)	1 set
8. T-bolt M12x150L	4	18. CBN Grinding Tool	1 set
9. Flange Nut M12	4	19. Hearing Aid	1
10. Maintenance Tool Box	1	20. Indicator	1
