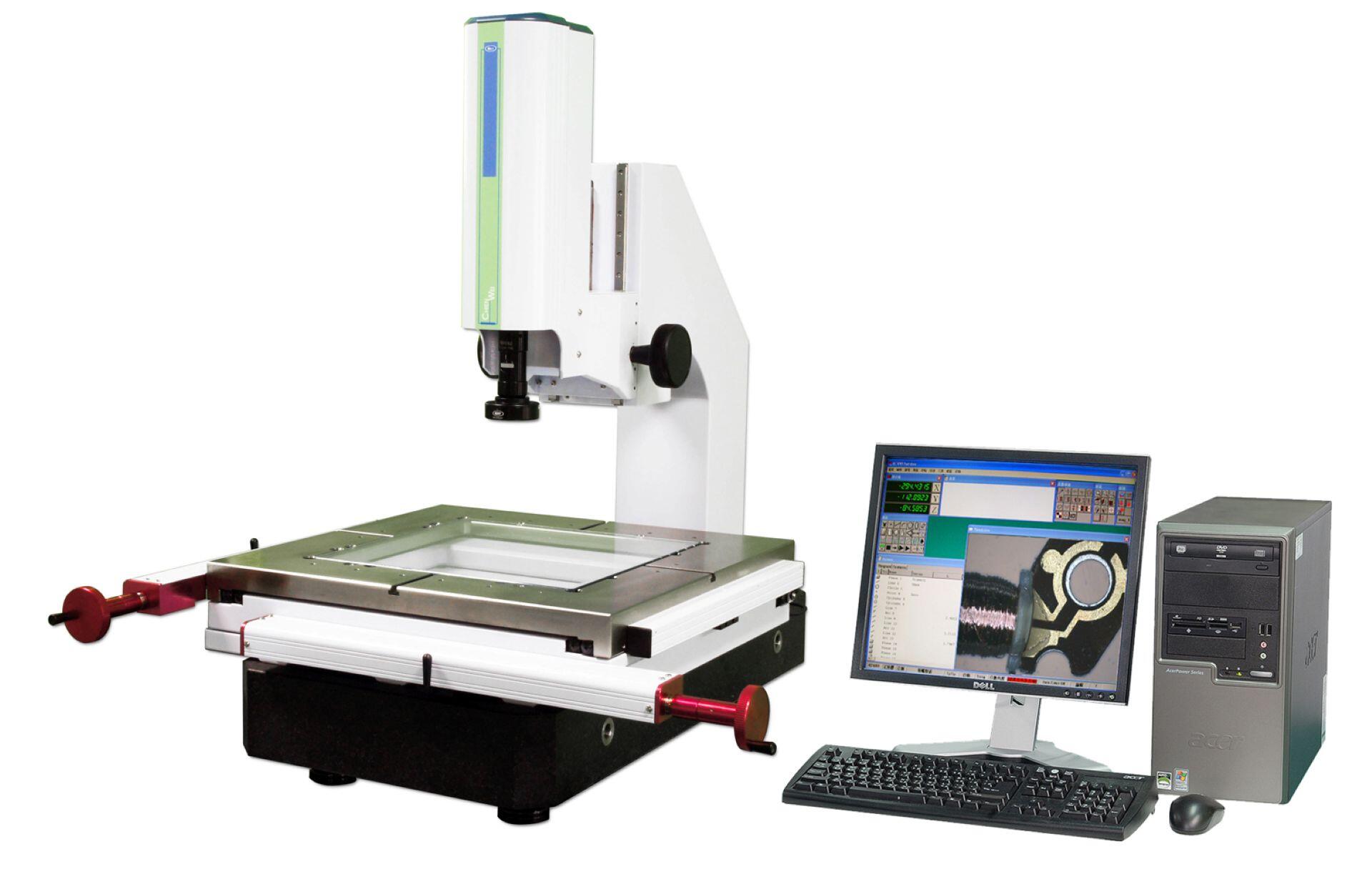

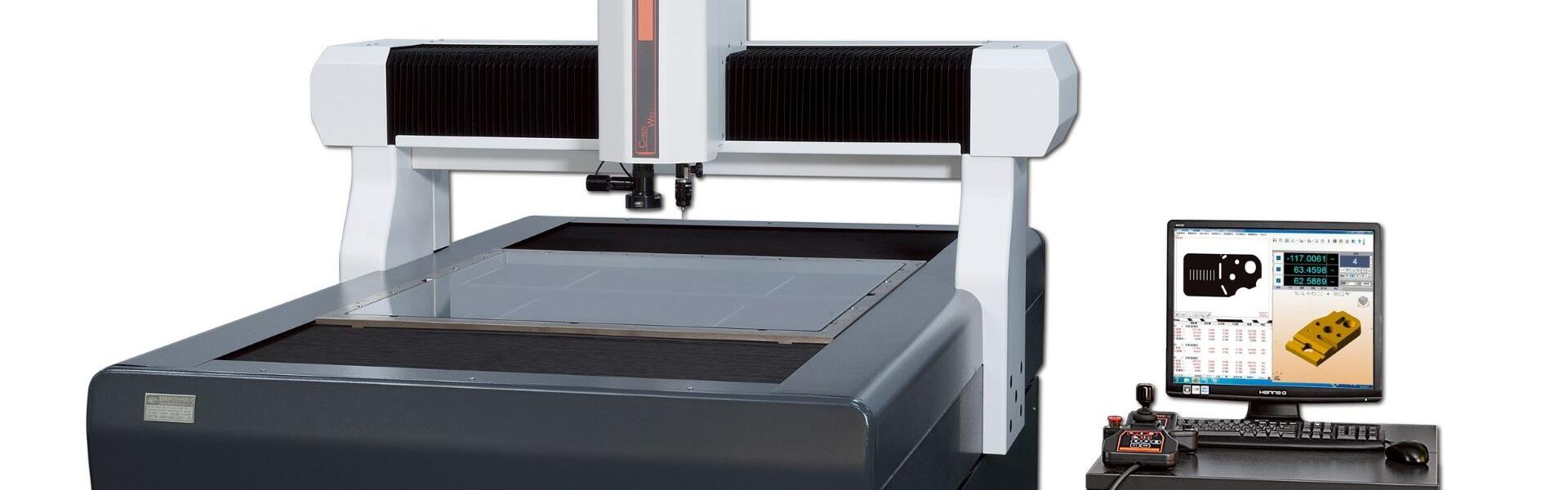

CW-3020
Overview
- Non-contact measuring, probe, or laser probe measurements are option.
2D Coordinate Measuring Instrument Features
1. Features:
Options of Centering Microscope, CCD Camera, Laser and other projection system depends on the different workpiece. Further application, manual, motorized with joystick or the CNC model can be optional by your demands.
2. Applications:
IC electronics, Lead Frame and the related manufacturers in the fields of LCD, Semiconductor, P.C.B Screen Printing WireCut, E.D.M, Rubber, Plastic, Precise Mold & Dies and other 2D workpiece machining.
3. Measuring Functions:
The multi-function MSU 3DPRO effects the 2D geometric measurement of Point, Line, Circle, Arc, Angle, Distance, Pitching, Alignment, and is acoompanied with the RS232 port.
Surface LED light | Coaxial LED light | Metallographical lens |
4 Programmable LED | Detent zoom | Motorized zoom |
MCR 20 | Coaxial zoom | Laser zoom |
Image CCD |
Equipment
Auto Zoom | MX-200 DRO Counter | Renishaw PROBE with STAR STYLI |
Rotary table
CW-1510N Rotary table | CW-2020N Rotary table | CW-3030 Rotary table |
Clamping jig tool
V-type rotary tool | Round type ER32 | Round type |
MSU 3D Pro software
Multi-icon buttons provide a quick and easy measurement. User be able to combine icons with window need in tool bar as project and display in program.
Software Interface | Auto-focus-CNC | Profile deviation |
Tools measurement | Auto-Alignment | Image measuring for screen print |
Tolerance check |
Specification
| Item | CW-3020-PV-CNC |
|---|---|
| Measuring range | 300x200x100 mm (X,Y,Z,) |
| Resolution | 0.001 mm Scales |
| Software | MSU-3D PRO |
| Vision | Color CCD + Zoom |
| Zoom | 30x ~ 200x |
| Surface light | White LED |
| Contour light | Green LED |
| Accuracy | U1=2+L/200 um |
| Repeatability | 0.002 um |
| Transmission | Linear Guideway + Rolling Drive Nut |
| Operation | CNC Program |
| Drive | Servo Motors + Joystick |
| Cast Iron | |
| Demo-parts height | 140 mm Max. |
| Demo-parts weight | 12 kgs Max. |
| Dimension | 890x820x1090 mm (Including Base Stand) |
| Dimension | 1300x950x1850 mm (Including Deluxe Table) |
| Michine weight | 382 kgs |
| Hardware | PC + 24" Monitor + WIN 10-PRO |
| Option | Programmabi light-Control or Auto-Zoom, Probe, Laser |
Overview
- Non-contact measuring, probe, or laser probe measurements are option.
Features
1. Features:
Options of Centering Microscope, CCD Camera, Laser and other projection system depends on the different workpiece. Further application, manual, motorized with joystick or the CNC model can be optional by your demands.
2. Applications:
IC electronics, Lead Frame and the related manufacturers in the fields of LCD, Semiconductor, P.C.B Screen Printing WireCut, E.D.M, Rubber, Plastic, Precise Mold & Dies and other 2D workpiece machining.
3. Measuring Functions:
The multi-function MSU 3DPRO effects the 2D geometric measurement of Point, Line, Circle, Arc, Angle, Distance, Pitching, Alignment, and is acoompanied with the RS232 port.
Related Accessories
Surface LED light
Coaxial LED light
Metallographical lens
4 Programmable LED
Detent zoom
Motorized zoom
MCR 20
Coaxial zoom
Laser zoom
Image CCD
Photos of optional accessories
Equipment
Auto Zoom
MX-200 DRO Counter
Renishaw PROBE with STAR STYLI
Rotary table
CW-1510N Rotary table
CW-2020N Rotary table
CW-3030 Rotary table
Clamping jig tool
V-type rotary tool
Workpiece dia: Ø3.0mm ~ Ø40.0mm
Round type ER32
Workpiece dia: Ø2.0mm ~ Ø20.0mm
Round type
Workpiece dia: Standard Ø3.0mm ~ Ø15.0mm
Special: Ø15.0mm ~ Ø25.0mm
MSU 3D Pro software
Multi-icon buttons provide a quick and easy measurement. User be able to combine icons with window need in tool bar as project and display in program.
Software Interface
Auto-focus-CNC
Profile deviation
Tools measurement
Auto-Alignment
Image measuring for screen print
Tolerance check
Specification
| Item | CW-3020V-CNC |
|---|---|
| Measuring range | 300x200x100 mm (X,Y,Z,) |
| Resolution | 0.001 mm Scales |
| Software | MSU-3D PRO |
| Vision | Color CCD + Zoom |
| Zoom | 30x ~ 200x |
| Surface light | White LED |
| Contour light | Green LED |
| Accuracy | U1=2+L/200 um |
| Repeatability | 0.002 um |
| Transmission | Linear Guideway + Rolling Drive Nut |
| Operation | CNC Program |
| Drive | Servo Motors + Joystick |
| Cast Iron | |
| Demo-parts height | 140 mm Max. |
| Demo-parts weight | 12 kgs Max. |
| Dimension | 890x820x1090 mm (Including Base Stand) |
| Dimension | 1300x950x1850 mm (Including Deluxe Table) |
| Michine weight | 382 kgs |
| Hardware | PC + 24" Monitor + WIN 10-PRO |
| Option | Programmabi light-Control or Auto-Zoom, Probe, Laser |
